Luminosyn? polymer TQ1 is now available, featuring:
High molecular weight with high solubility and high purity - TQ1 polymer is purified by soxhlet extraction with methanol, hexane and chloroform under an argon atmosphere - polymer at its pure best
Batch-specific GPC data - for confidence in the reliability and consistency of your materials, and useful information for your thesis/publications
Larger-quantity orders - so that you can plan your experiments with polymers from the same batch
價格
|
Batch |
Quantity |
Price |
|
M2076A1 |
100 mg |
5747.69 |
|
M2076A1 |
250 mg |
9889.88 |
|
M2076A1 |
500 mg |
16504.54 |
|
M2076A1 |
1 g |
28401.30 |
*for 5 - 10 grams order quantity, the lead time is 4-6 weeks.
Batch Details
|
Batch |
Mw |
Mn |
PDI |
|
M2076A1 |
150,244 |
61,571 |
2.44 |
General Information
|
Full name |
Poly[[2,3-bis(3-octyloxyphenyl)-5,8-quinoxalinediyl]-2,5-thiophenediyl] |
|
Synonyms |
PTQ1 |
|
CAS number |
565228-37-7 |
|
Chemical formula |
(C40H46N2O2S)n |
|
Molecular weight |
See Batch Details table above |
|
HOMO/LUMO |
HOMO = - 5.70 eV, LUMO = - 3.30 eV [1] |
|
Suggesting solvents |
Chloroform, chlorobenzene, dichlorobenzene |
|
Classification/Family |
Quinoxaline heterocyclic five-membered ring, Organic semiconducting materials, Wide band-gap polymers, Organic photovoltaics, Polymer solar cells, OFETs |

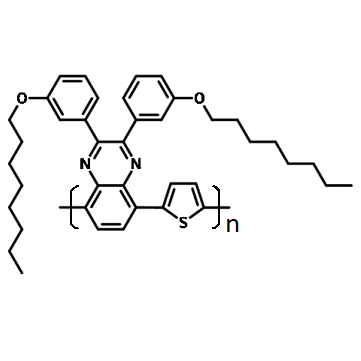

Chemical structure and product image of TQ1, CAS No. 565228-37-7.
Applications
TQ1 is an alternating copolymer based on an alkoxylated quinoxaline acceptor and a thiophene donor. It is a cost-effective medium band-gap polymer donor material used for high-performance polymer solar cells.
Over 7% device efficiency was achieved in OPV devics with PTQ1 as the polymer donor, PC71BM as the acceptor and 1-Chloronaphthalene as an additive [3]. This high efficiency was attributed to the polymer chain order and morphological effects.
